In the power industry, effective turbine outage management is key. It ensures reliability, efficiency, and profitability. Steam turbine and generator maintenance need careful planning and continuous improvement. This approach minimizes downtime and boosts performance. Adopting best practices in outage management helps power plants optimize their maintenance and achieve operational excellence.
Outage management is evolving from reactive repairs to proactive maintenance and preventive maintenance strategies that focus on improving both performance and reliability.
Allied Power Group, a leading provider in Houston, Texas, knows the importance of outage management. They use their expertise and proven best practices. This helps power plants streamline maintenance, cut costs, and extend their assets’ lifespan.
Effective outage management involves a detailed approach. It includes planning, scheduling, execution, and continuous improvement. Each phase, from inspections to return-to-service testing, requires careful coordination. By using risk-based models and data-driven decisions, power plants can focus on essential maintenance. This optimizes outage durations and extends intervals between major overhauls.
Key Takeaways
- Effective turbine outage management is vital for reliability and efficiency in power generation.
- Steam turbine and generator maintenance need meticulous planning and execution.
- Adopting best practices streamlines maintenance, reduces costs, and extends asset life.
- A detailed approach includes pre-outage inspections, repairs, upgrades, and return-to-service testing.
- Risk-based models and data-driven decisions optimize outage durations and maintenance intervals.
Introduction
Turbine outages pose a significant challenge in power generation, affecting both efficiency and profitability. Developing effective maintenance strategies is essential for reducing downtime and costs. This is vital for the performance of steam turbines and generators. By adopting best practices in outage management, power plants can enhance their operational efficiency and reliability.
Successful turbine outage management hinges on proactive planning and execution. It involves detailed inspections, efficient scheduling of maintenance, and ensuring spare parts availability. A systematic approach to outage planning minimizes downtime and boosts plant performance.
Effective outage management demands collaboration among operations, maintenance, engineering, and procurement teams. A multidisciplinary team ensures a seamless execution of all outage aspects. This team should develop a detailed maintenance plan, set realistic timelines, and manage resources effectively.
| Outage Type | Frequency | Duration |
|---|---|---|
| Planned | Annual or Semi-Annual | 2-6 weeks |
| Unplanned (Forced) | As needed | 1-7 days |
| Emergency | Rare | 1-3 days |
By concentrating on these critical aspects of outage management, power plants can enhance their efficiency and reduce downtime. The subsequent sections will explore specific best practices and strategies for effective turbine outage management.
Types of Turbine Outages
Turbine outages are a critical aspect of power plant operations, affecting reliability and efficiency. Understanding the different types is key for effective maintenance and resource allocation.
Turbine outages can be broadly categorized into three main types:
- Planned outages
- Unplanned (forced) outages
- Emergency outages
Planned Outages

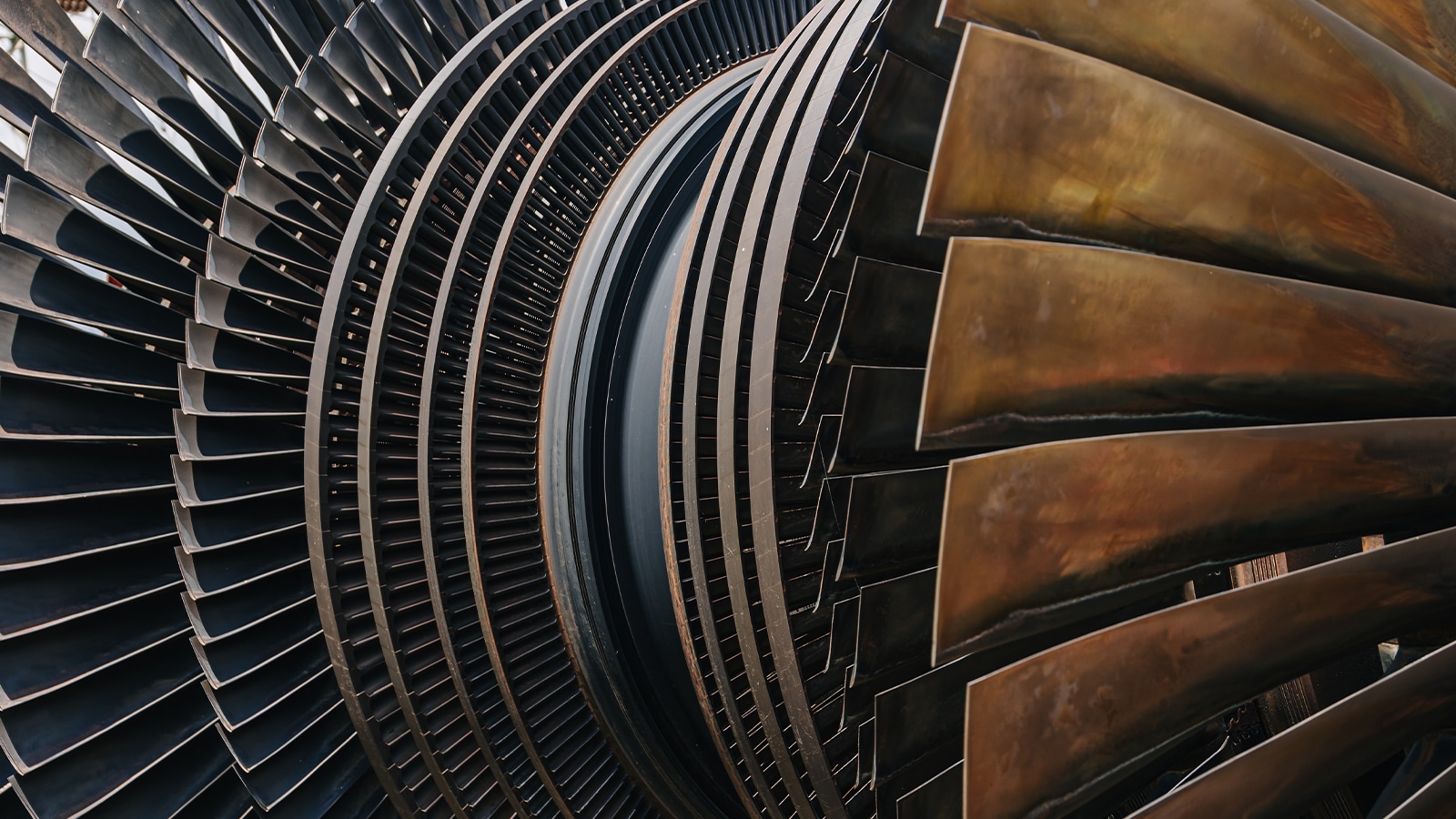

Planned outages are scheduled in advance for routine maintenance, inspections, and performance upgrades. They are coordinated with the plant’s maintenance schedules to minimize downtime. This ensures optimal performance. Planned outages allow for thorough inspections, repairs, and replacements of critical components, such as turbine blades, bearings, and seals.
Unplanned (Forced) Outages
Unplanned outages occur unexpectedly due to equipment failures, trips, or other issues. They can be caused by mechanical breakdowns, electrical faults, or control system malfunctions. It’s essential to have well-trained personnel and spare parts ready to minimize downtime.
Emergency Outages
Emergency outages are a subset of unplanned outages requiring immediate action. They may be triggered by severe equipment failures, such as a turbine blade liberation or a generator ground fault. The plant must be shut down promptly to prevent further damage and ensure personnel safety. Having well-defined procedures and trained staff is critical in such situations.
Minor vs Major Outages
Outages can be classified as minor or major based on the scope and duration of the work. Minor outages involve short-duration tasks, such as routine inspections or minor repairs. They have a limited impact on plant operations and can often be completed within a few hours or days. Major outages, on the other hand, involve extensive work, such as major component replacements or upgrades. These can last several weeks or even months, requiring significant planning and resource allocation.
Outage Planning & Preparation
Effective outage planning is the cornerstone of a successful turbine maintenance project. A successful outage requires a structured maintenance program that includes routine inspections, upgrades, and a clear strategy for both maintenance and repair. A detailed maintenance plan is essential, covering all outage phases from preparation to final testing and return-to-service. This ensures optimal results.
Creating a detailed timeline with realistic milestones is the first step in outage planning. It should include tasks such as:
- Pre-outage inspections and condition assessments
- Procurement of spare parts and materials
- Scheduling of internal and external labor resources
- Coordination of vendor deliverables and lead times
Developing a thorough budget allocation and cost forecasting model is also critical. It must account for both expected and unexpected expenses, such as:
- Labor costs (internal and external)
- Material and spare part expenses
- Equipment rentals and tooling
- Contingency funds for emergent work
To execute the maintenance plan effectively, a multidisciplinary outage team is vital. This team should include experts from various fields, such as:
- Mechanical engineers and technicians
- Electrical specialists
- Instrumentation and controls experts
- Project managers and schedulers
- Quality control and safety personnel
Early planning, typically 18-24 months in advance of the outage, is key. It secures necessary resources and minimizes delays. By investing time and effort into a detailed outage planning process, power plant operators can ensure a safe, efficient, and successful turbine maintenance event.
Inspection and Condition Assessments
Conducting thorough inspections and condition assessments before a turbine outage is essential. It helps identify issues and determine maintenance work scope. These assessments optimize outage planning and ensure critical repairs and upgrades are prioritized effectively. Integrating performance data from previous outages into the inspection phase allows teams to prioritize critical component repair needs more effectively and ensure optimal reliability and performance post-outage.
Pre-Outage Condition Monitoring Techniques
Condition monitoring techniques are vital for assessing turbine component health before an outage. Common methods include:
- Vibration analysis: Monitoring vibration levels and patterns can help detect issues such as imbalance, misalignment, or bearing damage.
- Oil analysis: Analyzing lubricant samples for contaminants, wear particles, and chemical composition can provide insights into the condition of bearings, gears, and other oil-wetted components.
- Performance trending: Tracking key performance indicators, such as efficiency, output, and heat rate, can help identify deterioration or anomalies in turbine performance over time.
Borescope Inspections, NDE, and Thermal Imaging
Advanced inspection techniques, such as borescope inspections, non-destructive evaluation (NDE), and thermal imaging, are invaluable. They assess turbine component internal condition without full disassembly.

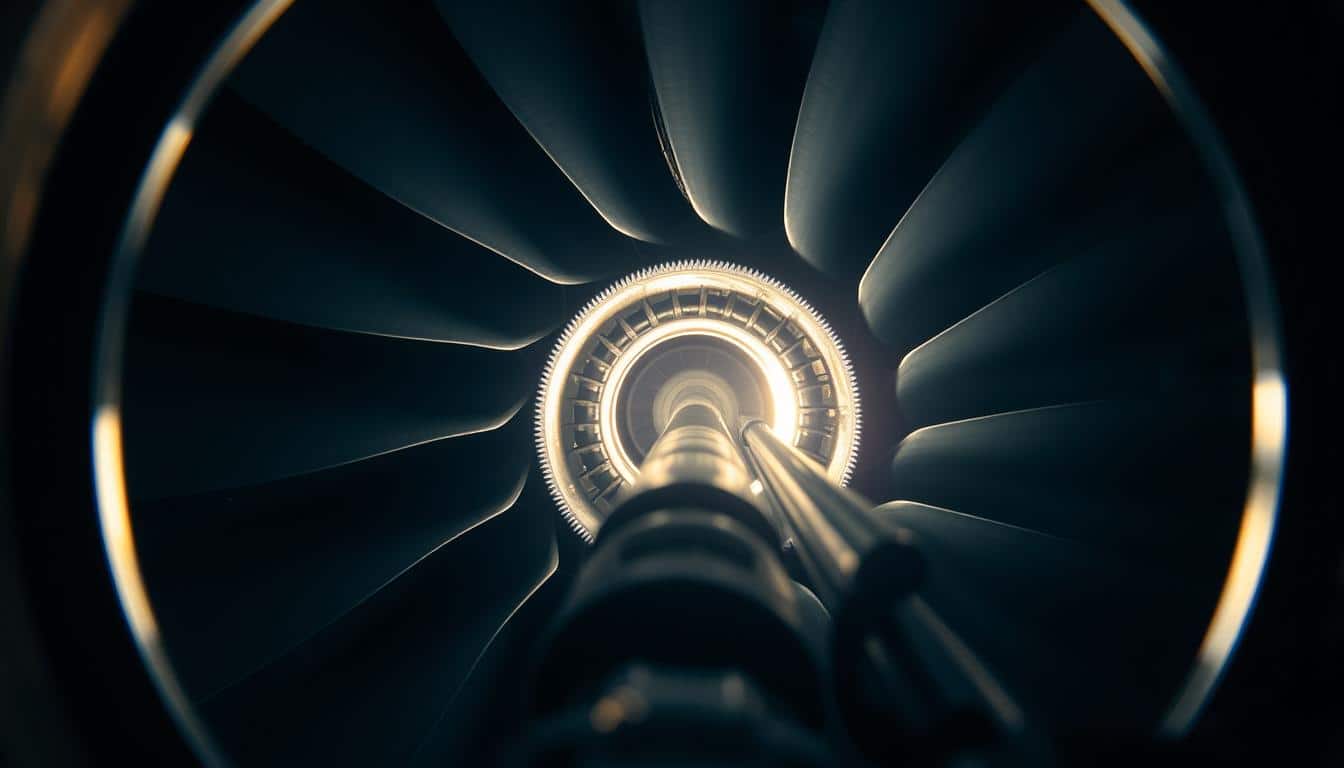

Borescope inspections involve inserting a flexible, fiber-optic camera into the turbine through access ports. This allows for visual examination of internal components for damage, erosion, or foreign object debris. NDE methods, such as ultrasonic testing, eddy current testing, and radiography, detect subsurface cracks, voids, or material anomalies. Thermal imaging, or infrared thermography, identifies hot spots, insulation issues, or cooling system deficiencies by visualizing temperature variations across the turbine.
OEM vs Third-Party Assessments
Plant managers must decide between OEM services or third-party providers for pre-outage inspections and condition assessments. Considerations include:
| Factor | OEM Services | Third-Party Providers |
|---|---|---|
| Expertise | In-depth knowledge of specific turbine models and designs | Broad experience across multiple OEMs and turbine types |
| Cost | Often higher fees due to proprietary knowledge and tools | Typically more competitive pricing |
| Availability | May have limited resources during peak outage seasons | Often more flexible scheduling and resource allocation |
The choice between OEM and third-party assessment services depends on specific needs, budget, and preferences. Many facilities opt for a combination of both for diverse perspectives during the inspection and condition assessment process.
Scheduling and Resource Management
Effective scheduling and resource management are key to reducing turbine outage times and costs. A well-structured outage timeline is vital for successful maintenance. It should detail each task, allowing enough time for completion while accounting for risks and contingencies.
For successful labor coordination, it’s essential to have the right skills at the right time. This means aligning internal teams with external contractors or specialists. Clear communication and defined roles prevent delays and conflicts.
Developing an Effective Outage Timeline
To craft an optimal outage timeline, follow these steps:
- Identify all necessary maintenance tasks and their dependencies
- Estimate task durations based on past data and expert advice
- Focus on critical tasks and allocate resources wisely
- Include buffer time for unexpected issues or changes
- Keep the timeline updated and share it with all stakeholders
Coordinating Internal and External Labor Resources
Labor coordination requires balancing internal staff with external support. Evaluate your team’s skills and capacity to identify where extra help is needed. When using contractors, set clear expectations for work, safety, and performance from the start.
Managing Vendor Deliverables and Lead Times
Vendor management is vital for timely part and service procurement. Work closely with suppliers to confirm lead times, shipping, and quality standards. Track deliveries against the outage timeline and address any delays promptly. Consider these strategies:
- Build long-term relationships with dependable vendors
- Secure priority service for essential components
- Keep a stock of often-used parts and supplies
- Use technology for automated orders and tracking
By improving scheduling, resource management, and vendor coordination, plant managers can cut outage times, control expenses, and ensure a safe, efficient return to operation.
Procurement and Spare Parts Logistics
Effective procurement and spare parts logistics are key to a smooth turbine outage execution. By planning inventory, sourcing parts strategically, and optimizing lead times, power plants can reduce downtime. This approach also helps avoid costly delays during maintenance.
Inventory Planning: What to Order and When
Inventory planning is vital for outage preparation. It involves identifying needed spare parts, determining quantities, and setting ordering timelines. Consider these factors for effective planning:
- Analyze historical maintenance data and failure rates to predict spare part needs
- Review condition assessment reports to identify components needing replacement
- Consult with OEMs and industry experts for recommended spare part inventories
- Establish lead times for each spare part and plan orders for timely delivery
OEM vs Third-Party Part Sourcing
Power plants often decide between OEM and third-party spare parts. Each option has its pros and cons:
| Factor | OEM Parts | Third-Party Parts |
|---|---|---|
| Quality | Guaranteed to meet OEM specifications | Varies; thorough vetting required |
| Cost | Often more expensive | Potentially lower cost |
| Availability | Direct access; may have longer lead times | Wider supplier network; potentially faster delivery |
| Warranty | Covered by OEM warranty | May offer limited or no warranty |
Evaluate each spare part’s criticality. Consider a mix of OEM and third-party sourcing for cost, quality, and availability balance.
Critical Spares and Lead Time Optimization
Stocking critical spares is essential to avoid extended downtime. Critical spares have long lead times, are prone to failure, or are vital for safe turbine operation. To optimize lead times:
- Classify spare parts by criticality and lead time
- Establish agreements with suppliers for expedited manufacturing and delivery of critical spares
- Explore shared inventory pools with other power plants or industry partners
- Continuously monitor and adjust inventory levels based on consumption and equipment performance
Implementing effective procurement and spare parts logistics ensures necessary components availability during turbine outages. This approach minimizes downtime and optimizes maintenance costs.
Execution of Maintenance Activities
The maintenance execution phase is where the rubber meets the road during a turbine outage. Careful planning and preparation give way to hands-on work as technicians disassemble, inspect, repair, and reassemble critical components. Adhering to best practices and proven protocols is essential for a safe and successful outage. Technicians carefully examine turbine parts to assess wear, fatigue, or corrosion turbine parts to assess wear, fatigue, or corrosion. This hands-on evaluation plays a key role in maintaining long-term equipment reliability.
Disassembly, Inspection, and Cleaning Protocols
The first step in any maintenance execution is the disassembly of the turbine and generator. Technicians methodically remove casings, rotors, blades, and other parts for thorough inspection and cleaning. Using specialized tools and techniques, they look for signs of wear, corrosion, cracking, or other damage. Borescope inspections allow for a detailed look at hard-to-reach areas. Proper cleaning removes built-up dirt, debris, and oxidation to prepare surfaces for repairs and reassembly.
Turbine Rotor, Blade, and Casing Repairs
Based on inspection findings, technicians perform necessary repairs on the turbine rotor, blades, and casings. This may involve welding to build up worn surfaces, machining to restore proper clearances, or heat treatment to relieve stress and extend component life. Specialized coatings may be applied to protect against future wear and corrosion. Attention to detail is critical to ensure repairs meet OEM specifications and standards.
Generator Stator and Rotor Maintenance
Generator maintenance focuses on the stator and rotor, the heart of the machine’s electrical output. Technicians carefully inspect stator windings and insulation for signs of degradation, delamination, or shorts. The rotor is checked for winding and insulation integrity, as well as journal and bearing surfaces. Cleaning, drying, and revarnishing processes help restore insulation properties. In some cases, a full or partial rewind may be necessary to replace aged windings.
Steam Turbine Valve Overhauls and Seal Replacements
Steam turbine valves and seals play a critical role in efficiency and safe operation. During the outage, technicians disassemble, inspect, and repair or replace these components as needed. Valve seats and stems are machined to restore steam-tight sealing. Actuators and linkages are serviced to ensure proper operation. Labyrinth seals, blade-ring seals, and shaft packings are replaced to prevent steam leaks and improve efficiency. Proper reassembly and testing ensure valves and seals perform as designed.
Upgrade and Modernization Opportunities
Turbine outages offer a chance to enhance performance, reliability, and efficiency. Strategic planning during downtime allows operators to maximize maintenance benefits. This extends the life of critical assets. Many facilities use outages as a chance to upgrade older systems with steam and gas turbine innovations, enabling higher output and lower emissions. These improvements are especially beneficial for mixed-cycle plants using steam and gas technology.
Evaluating Component Life Extension Technologies
Outages are the perfect time to explore advanced technologies for extending turbine component life. These solutions include:
- Upgraded materials with improved durability and resistance to wear
- Protective coatings that shield components from corrosion and erosion
- Optimized design modifications to reduce stress concentrations and fatigue
Implementing these technologies can significantly extend the life of critical parts. This reduces the need for costly replacements and unplanned outages.
Digital Controls and Monitoring Enhancements
Modernizing control systems and monitoring is vital during outages. Digital controls and advanced sensors enable real-time tracking and predictive maintenance. Key enhancements include:
| Upgrade | Benefit |
|---|---|
| Distributed control systems (DCS) | Improved automation and operational flexibility |
| Condition monitoring sensors | Early detection of developing issues |
| Data analytics and machine learning | Predictive maintenance and optimized decision-making |
These digital upgrades offer deeper insights into equipment health. They help optimize maintenance and reduce failure risks.
Efficiency Upgrades During Scheduled Downtime
Scheduled outages are ideal for efficiency upgrades. These upgrades improve turbine performance and lower costs. Consider:
- Steam path optimizations to minimize pressure losses and improve flow characteristics
- Advanced sealing technologies to reduce leakage and enhance thermal efficiency
- Upgraded turbine blades with improved aerodynamic profiles for higher output
Strategically incorporating these upgrades during downtime maximizes maintenance value. It ensures optimal turbine performance for years.
Testing and Return-to-Service Readiness
After completing turbine and generator maintenance, a thorough testing and verification process is vital. This ensures a smooth return-to-service. It involves various checks and assessments to confirm the unit’s readiness for operation. It also identifies any issues before start-up.
Steam Path and Rotor Alignment Verification
Ensuring steam path and rotor alignment is key to return-to-service readiness. Proper alignment prevents rubbing, vibration, and performance issues. Technicians use precise tools and techniques to check clearances and rotor positioning.
Generator Testing: Insulation Resistance and EL-CID
Generator testing is critical in the return-to-service process. Insulation resistance measurements and Electromagnetic Core Imperfection Detection (EL-CID) are essential. These tests check the stator winding insulation and stator core laminations’ health. They help spot any deterioration or defects that could cause generator failures.
Start-Up Sequencing and Load Testing
A planned start-up sequencing and load testing procedure precedes commercial operation. It involves gradually increasing speed, synchronizing with the grid, and applying incremental loads. Load testing verifies the unit’s performance, efficiency, and reliability under various conditions.
Throughout testing and return-to-service, teamwork between maintenance teams, engineers, and control room operators is critical. Detailed documentation, data analysis, and performance monitoring are key. They ensure any issues are quickly identified and resolved before full-load operation.
Summary
Effective turbine outage management is key for power generation companies to keep reliability, efficiency, and profitability high. Incorporating a comprehensive maintenance strategy ensures that power plants can consistently meet demand, reduce emergency repairs, and extend equipment life cycles. By following best practices in planning, execution, and maintenance, downtime and costs can be greatly reduced. Detailed inspections and condition assessments help teams spot issues early and plan effectively.
In the outage execution phase, sticking to established protocols for disassembly, repairs, and upgrades is vital. This includes careful maintenance of critical parts like turbine rotors, blades, casings, and generators. Advanced technologies and expert services from companies like Allied Power Group help power plants optimize maintenance and extend asset life.
It’s also critical to conduct thorough testing and verification before returning the turbine to service. This ensures all components are properly aligned and functioning as they should. By adopting these best practices and working with experienced service providers, power generation facilities can boost their uptime, reliability, and efficiency.
FAQ
What is the importance of turbine outage management for power plants?
Turbine outage management is key for power plants to ensure reliability, efficiency, and profitability. It involves planning, inspecting, repairing, and upgrading turbines and generators. This approach minimizes downtime and costs, ensuring optimal performance.
What are the different types of turbine outages?
Turbine outages are categorized into planned, unplanned (forced), and emergency types. Planned outages are scheduled for maintenance and inspections. Unplanned outages occur due to equipment failures. Emergency outages require immediate action to prevent damage or safety risks. Outages can also vary in scope and duration, classified as minor or major.
How early should outage planning begin, and what does it involve?
Outage planning should start 18-24 months in advance to secure resources and avoid delays. It includes creating a detailed maintenance plan, setting timelines, allocating budgets, and forecasting costs. A multidisciplinary team with experts from various fields is also essential.
What are the benefits of pre-outage inspections and condition assessments?
Pre-outage inspections and assessments are critical for identifying issues and determining maintenance needs. Techniques like vibration analysis and thermal imaging help detect damage or anomalies. This provides valuable insights into equipment health.
How can efficient scheduling and resource management minimize outage durations and costs?
A detailed outage timeline helps coordinate activities and resources. Managing labor, vendor deliverables, and lead times is vital. Regular communication and progress tracking help resolve issues promptly, reducing outage durations and costs.
What are the key considerations for procurement and spare parts logistics during an outage?
Effective procurement and logistics involve inventory planning and identifying required parts. Deciding between OEM and third-party parts depends on quality, cost, availability, and warranty. Stocking critical spares and optimizing lead times minimizes downtime and avoids delays.
What are the main focus areas during the execution of maintenance activities?
Efficient and safe execution of maintenance activities is essential for a successful outage. This includes proper disassembly, inspection, and cleaning, as well as repairs and maintenance of turbine components. Overseeing valve overhauls and seal replacements is also critical.
How can turbine outages be leveraged for upgrades and modernization?
Outages offer opportunities for upgrades and modernization to enhance performance and efficiency. Evaluating component life extension technologies and implementing digital controls are key. Efficiency upgrades, such as steam path optimizations, can also be performed during downtime.
What testing and verification procedures are essential before returning the turbine and generator to service?
Thorough testing and verification are necessary before returning the turbine and generator to service. This includes steam path and rotor alignment checks, generator testing, and start-up sequencing. Load testing validates performance and stability under various conditions.
How can partnering with experienced service providers benefit turbine outage management?
Partnering with experienced service providers like Allied Power Group offers the expertise needed for successful outage management. These providers offer maintenance services, helping plant operators minimize downtime, reduce costs, and ensure optimal performance of their assets.
